Count Code Converter / Countdown Display.
Reader Display Units
| PN | Description |
| CS5x4R-1 | Dual 14 Digit .56 char height RM w/ Ethernet port |
| CS5x4R-1 DPS | Dual 14 Digit .56 char height RM w/ Ethernet port dual power supply |
| RDU -.56.3 | Triple 14 digit .56 char height display |
| RDU 1.2 | Single 16 digit alphanumeric display either RM (2 RU) or Trunion mount with IP |
| RDU 1.2 x 2 | Dual16 digit alphanumeric display either RM (3 RU) or Trunion mount with IP |
| RDU1.2 x 3 | Triple display 4 rack unit with Trunion mount with IP |
| RDU 2.0 | Single 16 digit alphanumeric display. Trunion mount with IP |
| RDU 2.0 x 2 | dual 16 digit alphanumeric display . Trunion mount with IP |
| RDU 3.0 | Single 16 digit alphanumeric display. Trunion mount with IP |
| RDU 4.0 | Single 16 digit alphanumeric display. Trunion mount with IP |
Distribution Amplifliers
| PN | Description |
| DA-422-15T | RS-422 simplex DA 1 input , 15 outputs, Rack mount (1 RU) |
| DA-422-IRIG-2×4 |
RS-422 &IRIG-B simplex DA 1 input, 4 output Rack mount (1 RU) |
| 802700 |
10 position RJ-45 to BNC/ Twinal adaptor 1 RU |
| 483200 | RS-422 &IRIG-B simplex DA IRIG-B(audio) 1 input, 4 output RM (1 RU) BNC & Twinax |
| 483120 | Audio/Data/Ethernet Combiner Rack shelf with 4 PC boards |
| 483120A | Audio/Data/Ethernet Combiner With BNC and Twinax Jacks |
| 483110 | Audio/Data/Ethernet Combiner Rack Shelf |
| 483100 | Audio/Data/Ethernet Combiner PC Board 2×4 RJ-45 |
| 483300 | Audio/Data/Ethernet Combiner 1 RU Cabinet W 4 PC boards for 16 Channels |
| 802775 | 8 Ch. BNC to Twinax Unbalanced to balanced converter 1 RU |
| 802776 | 8 Ch. BNC to Twinax and RJ-45 Balun 1 RU |
| 802810 |
8 Ch. BNC to Twinax and Dual RJ-45 Balun 1 RU |
Signal Converter
| PN | Description |
| 109-64-8-CS-5 | 109-64 to CS-5 converter RM |
| 72550 | CS-5 to Parallel converter LED screen 1 RU |
| 72560 | IRIG-B to Parallel converter LED screen 1 RU |
| 805300 | CS-5 to 109-64 converter W/ LED screen 1 RU |
Count Products
| PN | Description |
| 75200-IP | 8 channel CS-5 Multiplexer with IP |
| 802500 | 1RU Dual Cs-5×8 to CS-5 converter with dual Mlo outputs |
| 802090-IP | First Motion Converter w/D connectors |
Camera Housing
| PN | Description |
| 2394082 | Camera House Round top with rain guard |
| 2394082-9 | Glass Holder |
| 2394082-8 | Glass |
| 2394082-10 | Rain Guard |
Panels and Boxes
| PN | Description |
| 411053 | Quad A/B BNC Switch Box |
| 70200-48 | Dual Speaker panel for DRCS comm system |
| 70250(70210) | Speaker panel for DRCS comm system 1 RU |

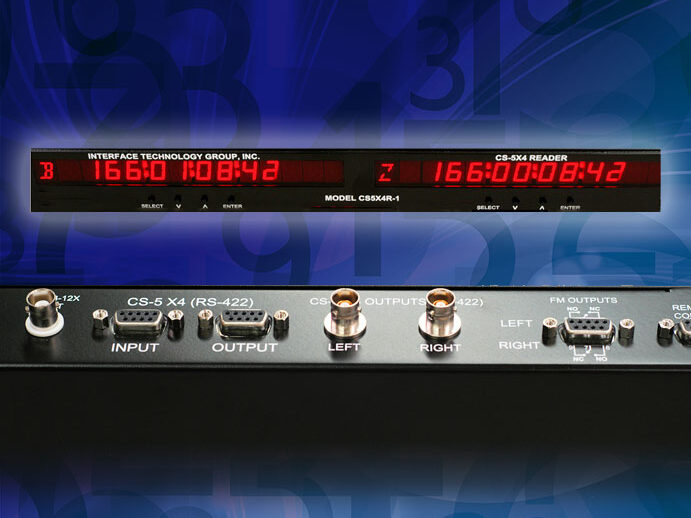

CS-5 x 4 Reader
Reads CS-5246 x 4, IRIG B-12x, CS-5, Auto Baud Detection.
Has an IRIG B settable offset for local time. Converts IRIG B to a CS-5 output signal for a standard CS-5 RDU display.

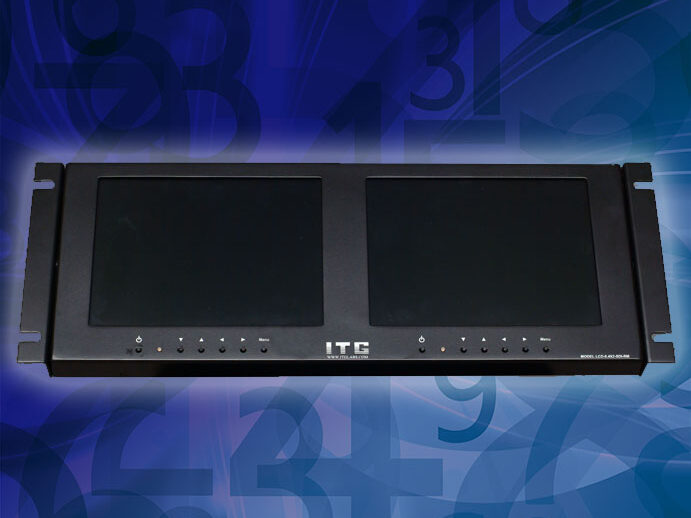

The 8.4 DRM Monitor
Dual 8.4 high definition TFT LCD display (available with SVGA or XGA native screen resolution)
Accepts composite, component, S-video, VGA and DVI inputs standard along with NTSC/ PAL/ and SECAM standards. Supports SD and HD-SDI with repeated (re-clocked) outputs.

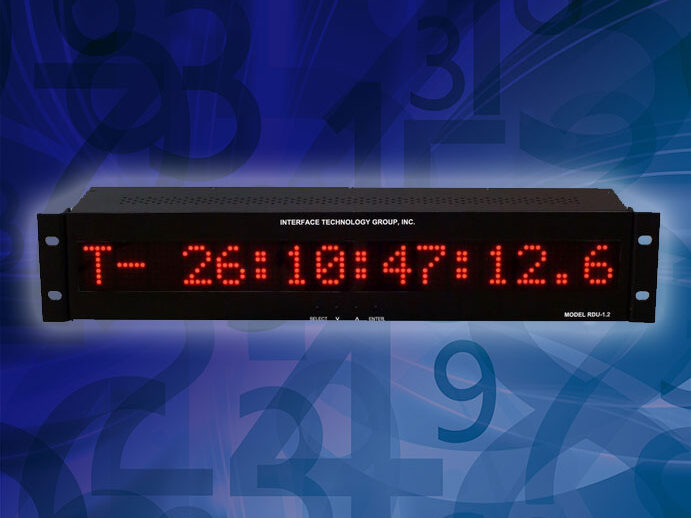

RDU 1.2
16 digit alpha numeric dot matrix display. Reads IRIG-B, CS-5×4, CS-3, MILA, CS524x and display either the EC (even count) field or the LT (launch time) field.
Both CS524x or 5×4 may be displayed with decimal seconds or without both signals. Will read with automatic baud rate detection.

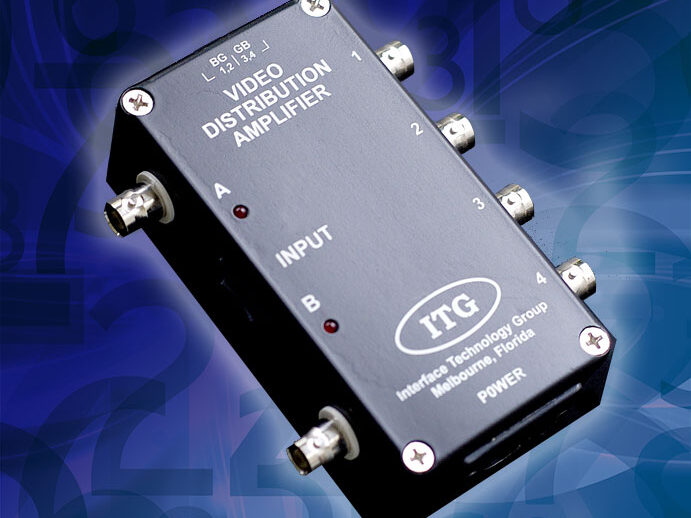

Portable VDA
Dual 8.4 high definition TFT LCD display
(available with SVGA or XGA native screen resolution)
Portable VDA has a rugged die -cast aluminum case fully insulated from circuitry.

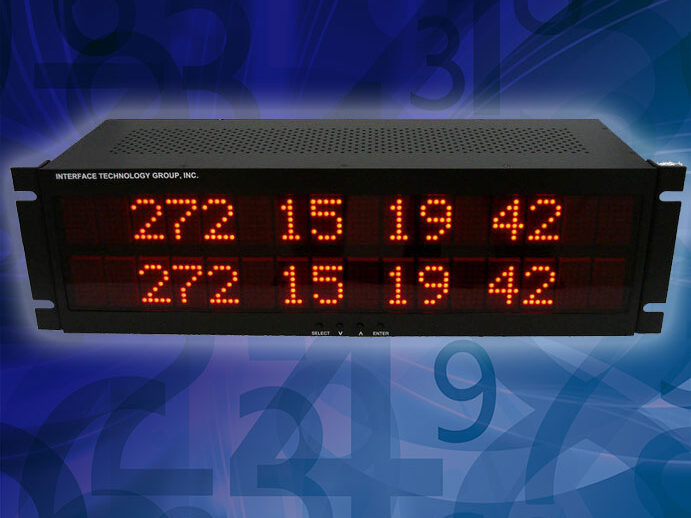

Dual RDU 1.2
Dual 16 digit alpha numeric dot matrix display reads CS-524, CS-5+4, CS5x8, CS-3, MILA, IRIG-B, and 109-64 with optional PCB.
Can read two counts at once or any two display option same features as our RDU 1.2.
